Product Description:
The Rotary Actuators Voice Coil Motor Series utilizes the technology of the Rectangular Series by bending a rectangular series of products to create a preferred angular positioning system. Typical torques are up to 100 degrees and torques up to 50 N-m.
Typical applications for the oscillating series are mirror positioners in laser technology, oscillating valve actuators, oscillating positioning systems, and flight controllers in the semiconductor industry, automation, and the aircraft industry.
Features:

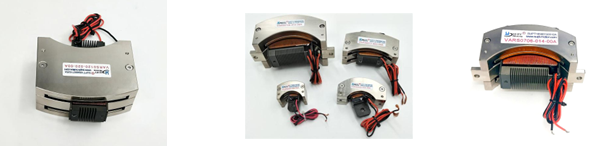

- Product Name: Rotary Voice Coil Motor (Rotational VCM, Rotary voice coil Actuator, Rotary VCM)
- Voltage:6.3V
- Type: Rotary Motor
- Stroke: 30°
- Weight: 54.2g
- Noise: Low
Technical Parameters:
| Property | Details |
| Type | Rotary Voice Coil Motor |
| Warranty | 1 Year |
| Weight | 54.2g |
| Power | 2W |
| Voltage | 6.3V |
| Material | Aluminum Alloy |
| Speed | High |
| Stroke | 30° |
| Noise | Low |
| Size | 50*50*50mm |
| Product Model |
Peak torque
(N-m) | Continuos torque
at 25℃(N-m) | Total Stroke
degrees
( mm) | Max Voltage
(V) | Back EMF Constant
(V/m/s) | Weight of the coil(g) | Length
(mm) | Width
(mm) | Height
(mm) |
| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |
| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |
| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |
| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |
| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |
| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.14 | 60 | 25.8 | 0.52 | 115 | 115 | 65 | 54.5 |
| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ￠240 | | 78 |
Applications:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
| 2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
It is widely used in semiconductor, precision test and detection ,Boat,Car, Electric Bicycle, Medical Ventilators,Optical project,Laser equipment.
