Product Description:

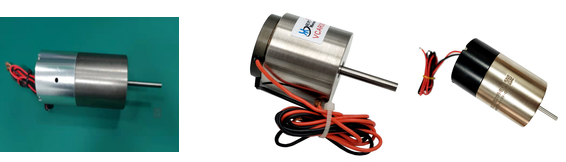

Fully-Housed Voice Coil Actuator
The Fully-Housed Voice Coil Actuator is made of an aluminum alloy and features a high resolution and a continuous force of 12.3N. It also has a 50mm lead wire and a micro output shaft motor, making it a great choice for a wide range of applications. This fully-protected and fully-enclosed actuator is designed for use in harsh environments and provides superior performance.
This Fully-Housed Voice Coil Actuator is ideal for applications in aerospace, automotive, medical, and other industries. It is designed for high speed operation and offers excellent accuracy and reliability. This actuator is also vibration and shock resistant, making it suitable for many harsh-environment applications. Additionally, it is highly efficient, with a low power consumption and a long life span.
The Fully-Housed Voice Coil Actuator is a reliable and robust solution for applications requiring precise motion control. It is designed to provide maximum performance and long-term reliability. This actuator is an ideal choice for applications that require high-precision motion control.
Features:
- Product Name: Totally-Housed Voice Coil Actuator
- Material: Aluminum Alloy
- Connector: Molex
- Weight: Light
- Type: Outlet Type Voice Coil Motor
- Design: Fully-Enclosed Voice Coil Actuator
Technical Parameters:
| Parameter | Comprehensively-Housed Voice Coil Actuator |
| Product Model | VCAH0040-0075-00A |
| Rated Speed | 100HZ(RPM) |
| Peak Force | 40N |
| Positioning Accuracy | ±0.1mm |
| Voltage | 16.8V |
| Product Name | Fully-Housed Voice Coil Actuator |
| Continuous Force | 12.3N |
| Lead Wire | 50mm |
| Resolution | High |
| Type | Micro Output Shaft Motor |
| Product Model | Peak Force
(N) | Continuous Force
at 25℃(N) | Total Stroke
(mm) | Max Voltage
(V) | Back EMF Constant
(V/m/s) | Stator Diameter (mm) | The Length
(mm) | Shaft end thread
(mm) |
| VCAH0253-0120-00A | 253 | 46.5 | 12 | 42.7 | 16 | 53.95 | 109 | M5(Inner) |
| VCAH0011-0070-00A | 11 | 3.6 | 7 | 26.2 | 4.9 | 31.5 | 38.9 | M3(Outer) |
| VCAH0013-0070-00A | 13 | 4.2 | 7 | 26.6 | 5.7 | 29 | 40.5 | M3(Outer) |
| VCAH0030-0100-00A | 30 | 7.2 | 10 | 24.9 | 5.2 | 37 | 47 | M3(Outer) |
| VCAH0040-0075-00A | 40 | 12.3 | 7.5 | 16.8 | 6.9 | 36 | 50 | ∮3 |
| VCAH0040-0240-00A | 40 | 6 | 24 | 44.5 | 8 | 41 | 83 | M3(Inner) |
| VCAH0065-0140-00A | 65 | 24.6 | 14 | 27.6 | 16 | 44 | 75 | M3(Inner) |
| VCAH0230-0110-00A | 230 | 100 | 11 | 34.2 | 37 | 71 | 117 | ∮10 |
Applications:
The SUPT Fully-Housed Voice Coil Actuator (VCAH/VCRH Series) is a totally-housed, fully-protected voice coil actuator with excellent performance.It is widely used in semiconductor, precision test and detection, valve flow control field.
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
| 2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
